All channels are "physical RF" channels, not what the PSIP displays (left column). A special column shows the PSIP displayed on said channel.
CANADA
Ontario
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |
| CHBX | 2 | Saut Ste Marie, ON | 5-20-13 | analog | "The Voice" from CTV video: |
-- | 1039 miles (Via Es) (local ads) (relog) |
| CKCO-TV2 | 2 | Wiarton, ON | 5-20-13 | analog | Same program as above (behind) | -- | 1264miles (Via Es) Video >> |
| CITO | 3 | Timmins, ON | 5-20-13 | analog | Same program and CTV: |
-- | 1233 miles (Via Es) Video |
CHBX was relogged on 7-6-14 playing a country music show with Brad Paisley in color (video here).
Montana
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |

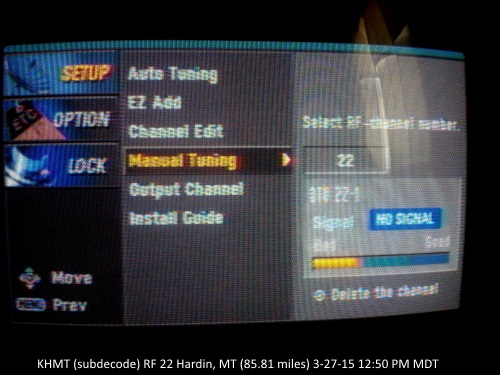

| KHMT | 22 | Hardin | 3-27-15 |
Digital | Sub decode. Tr noted to Billings |
-- | Approx 85.81 miles (Via Tr)* |
*KHMT although subdecode is the only RF 22 in the immediate region. Relatively strong Tr to Billings was noted during this reception. This is the first time at this RX location that I have ever seen even a whiff of KHMT.
Wyoming
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |

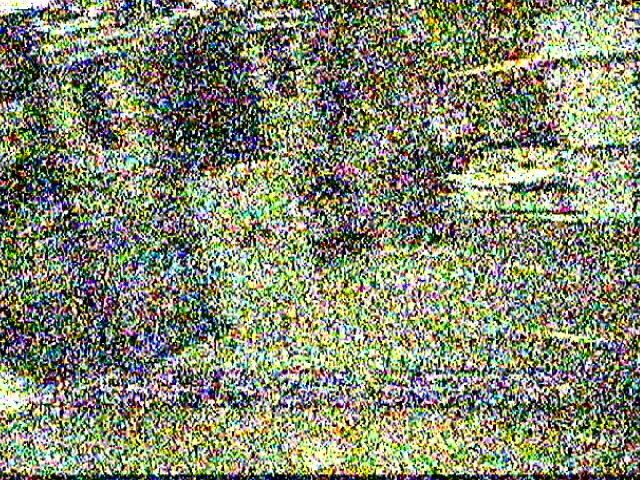

| KSHW-LP | 06 | Sheridan | 1-17-12 |
Analog | Franken FM - audio (ESPN)  |
-- |
 14 miles LOS (Video) |

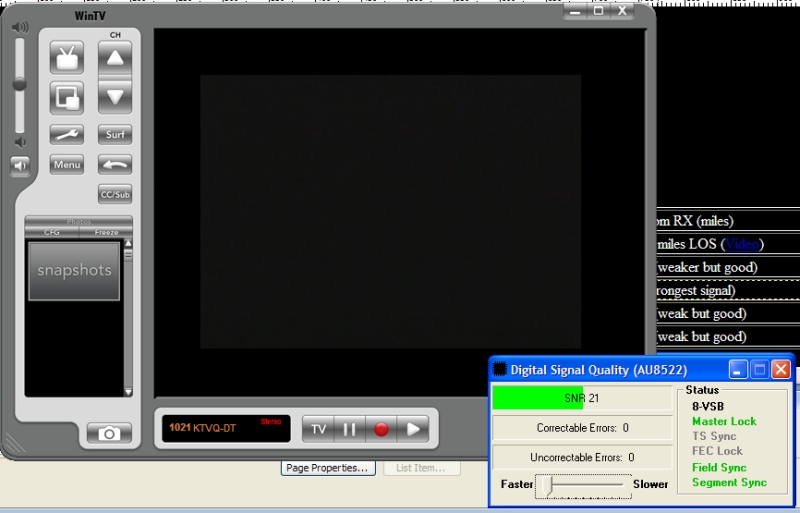

| K09XK-D | 09 | Sheridan | 5-14-11 |
Digital | CBS xlator of KTVQ  |
2-1 | 13.9 miles (weaker but good) |

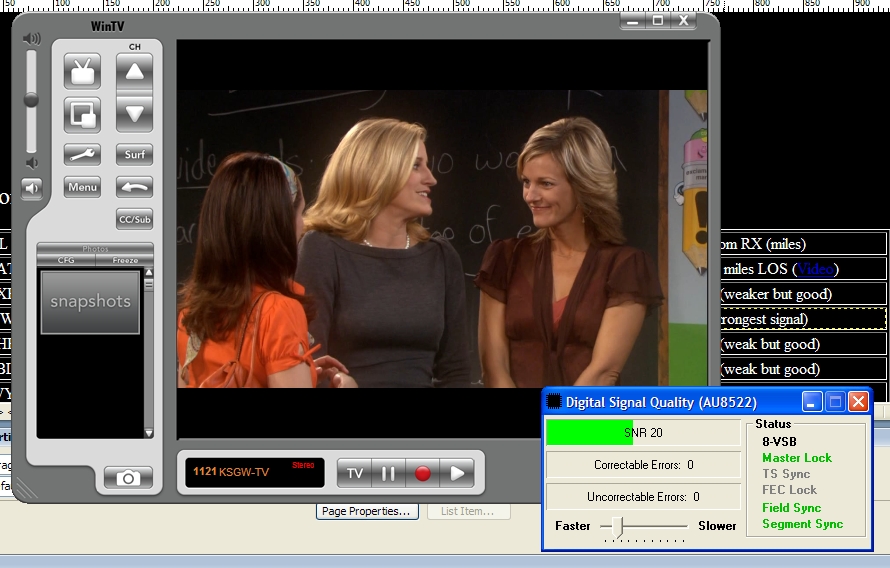

| KSGW | 13 | Sheridan | 5-14-11 | Digital | ABC (Satellite of KOTA) |
12-1 | 14 miles (strongest signal) |
| K15HK-D | 15 | Sheridan | 5-14-11 | Digital | PBS (Wyoming Public Television) |
4-1 | 13.3 miles (weak but good) |

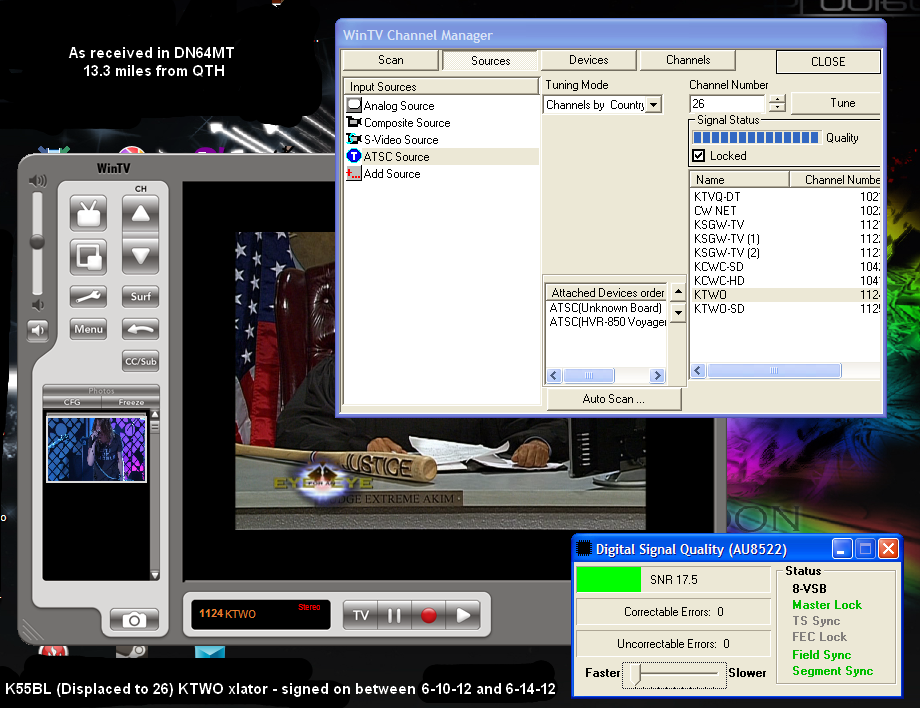

| K26LW-D | 26 | Sheridan | 6-14-12 | Digital | ABC (KTWO xlator) |
2-3 | 13.3 miles (weak but good) |

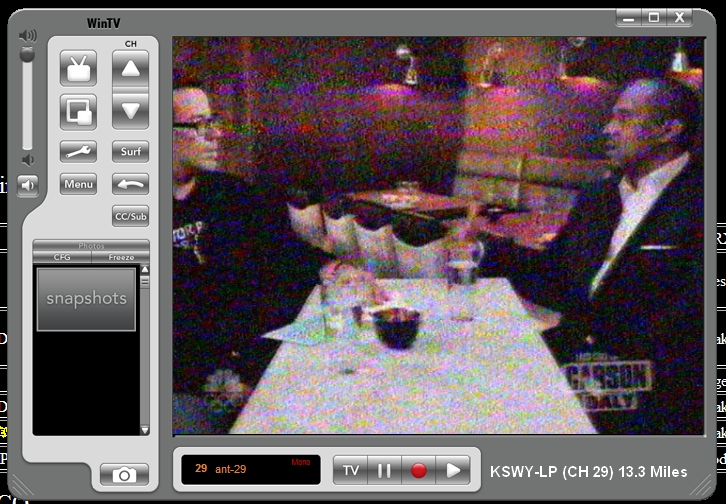

| KSWY-LP | 29 | Sheridan | 5-14-11 | Analog | NBC (KCWY) |
-- | 13.3 miles (good quality analog) |
MEXICO
Baja California, Norte
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |
| XHBC | 03 | Mexicali, BN | 5-19-13 | Analog | Telvisa Mexicali Logo (See videos) |
-- | 958 miles (via Es) |
XHBC was received with a dipole cut a little bit bigger than CH 2 (about 90" in size), and was taped off of a 1992 analog television on 5-19-13 at roughly 8:15 pm MDT. It was relogged in color with sound on a pair of rabbit ears on 7-6-14 (2nd video here).
Chihuahua
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |
| XEPM | 02 | Ciudad Juarez | 6-4-11 |
Analog | Tu Canal Logo Bottom right + video |
-- | 905 miles (via Es) |
Well folks, XEPM confirms you can receive Es via rabbit ears indoors and about 3 feet away from a window. It just has to be strong enough! - Justin Dn64.
Tamaulipas
| CALL | CH | COL | DATE RX | analog/digital | Image/Additional Information | PSIP | Distance from RX (miles) |
| XEFE | 02 | Nuevo Laredo | 6-1-13 |
Analog | Not cnfrm but skip path + video |
-- | 1266 miles (via Es) |
UNKNOWN
